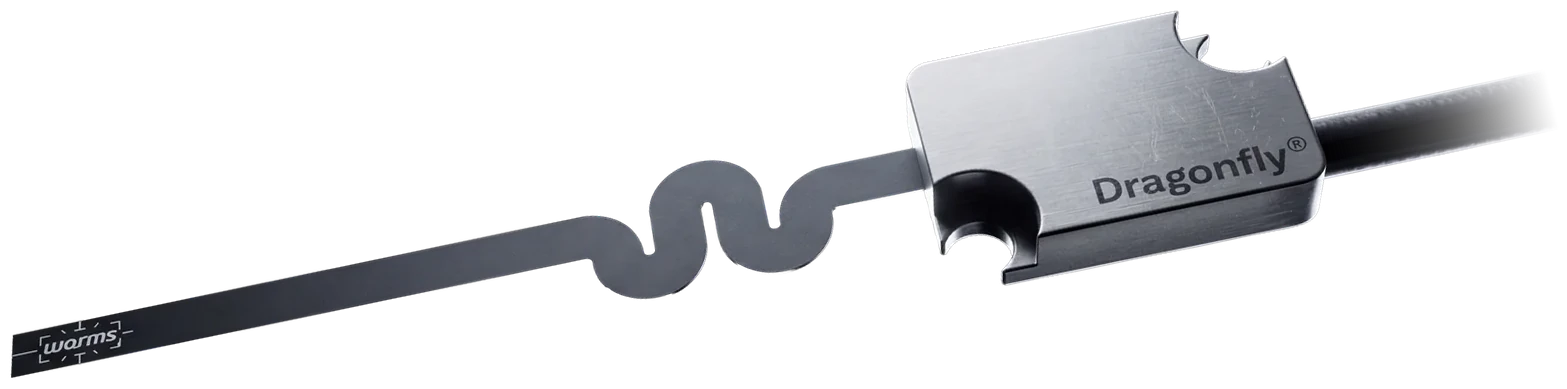

Dragonfly^®

IO sensor

Industrial-grade (IP67 · M12) IEPE strain sensor.

Sensitivity (3 grades): 1.08 → 108 mV/µε
Ingress protection: IP67
Industrial connector: M12 coding A
Bandwidth (×1 grade): 0.02 Hz → 100 kHz

Technical specifications

The full datasheet. Nothing hidden.

Piezo & electrical (×1 / ×10 / ×100 grades)

Sensitivity (25 °C): 1.08 / 10.8 / 108 ±10 % mV/µε
Temperature sensitivity (-55 to +40 °C): 210 / 240 / 500 ±150 ppm/K
Transverse sensitivity |Kt|: < 4 %
Measurement range: ±3000 / ±500 / ±50 µε
Non-linearity (±500 µε): < 1 %
Operating temperature range: -55 to +125 °C
Bandwidth: 0.02 / 0.04 / 0.4 Hz to > 100k / > 100k / 80k Hz
Discharge time constant: 50 / 25 / 2.5 s
Constant current bias: 2 to 20 mA
Voltage compliance: 18 to 24 V
Output bias voltage: 12.0 ±2 V
Output impedance (> 1 kHz): < 30 Ω

Noise floor (constant current 4 mA, by grade)

RMS noise [0.02 to 10] Hz: 27 / 12 / 4 nε
RMS noise [10 to 20 k] Hz: 15 / 5 / 4 nε
Spectral noise @ 1 Hz: 5300 / 1900 / 1500 pε/√Hz
Spectral noise @ 100 Hz: 520 / 180 / 150 pε/√Hz
Spectral noise @ 1 kHz: 170 / 60 / 50 pε/√Hz
Spectral noise @ 10 kHz: 52 / 18 / 15 pε/√Hz

Pinout (M12 — 4-pin male, coding A, shielded)

Pin 1 (Brown): Not connected
Pin 2 (White): IEPE signal
Pin 3 (Blue): IEPE ground
Pin 4 (Black): Not connected

General

Fatigue life: > 8 × 10⁶ cycles at ±1000 µε
Weight: 36 g
Connector: M12 coding A (shielded, 4-pin)
Ingress protection: IP67
Maximum voltage: 30 V
Maximum current: 30 mA
Maximum temperature: 150 °C (exposure 4 h)
Minimum bending radius: 2 cm (sensing area)

Download the datasheet
